Effortless Resource Management: A Guide to use SwiftGen in iOS

Effortless Resource Management: A Guide to use SwiftGen in iOS

SwiftGen is a popular code generation tool for iOS projects that helps developers to manage resources like images, colors, strings, and fonts more efficiently and make them type-safe to use. In this guide, I'll walk you through the steps to set up and use SwiftGen in your iOS project.

Step - 1 Installation

The SwiftGen can be integrated into your iOS project using different methods, depending on your preferences and project setup. Common ways to install SwiftGen:

1. Using CocoaPods:

To install SwiftGen with CocoaPods, follow these steps:

  • Open your project directory in the terminal.
  • If you haven't already installed CocoaPods, you can install it using the following command in the terminal:
sudo gem install cocoapods
  • Create a Podfile if you don't have one already by running:
pod init
  • Edit your Podfile to include SwiftGen pods. Add these lines:
platform :ios, '9.0' # Adjust the iOS version as needed

target 'YourProjectName' do
  # Replace 'YourProjectName' with your actual target name
  pod 'SwiftGen'
  # Add more pods for other resource types if needed
  • Save the Podfile and run this command in terminal:
pod install
  • Now, close your xcode and open the project directory in Finder.
  • Click on YourProjectName.xcworkspace to open your project again.
  • After successfully installation, you can see SwiftGen pod in your pods

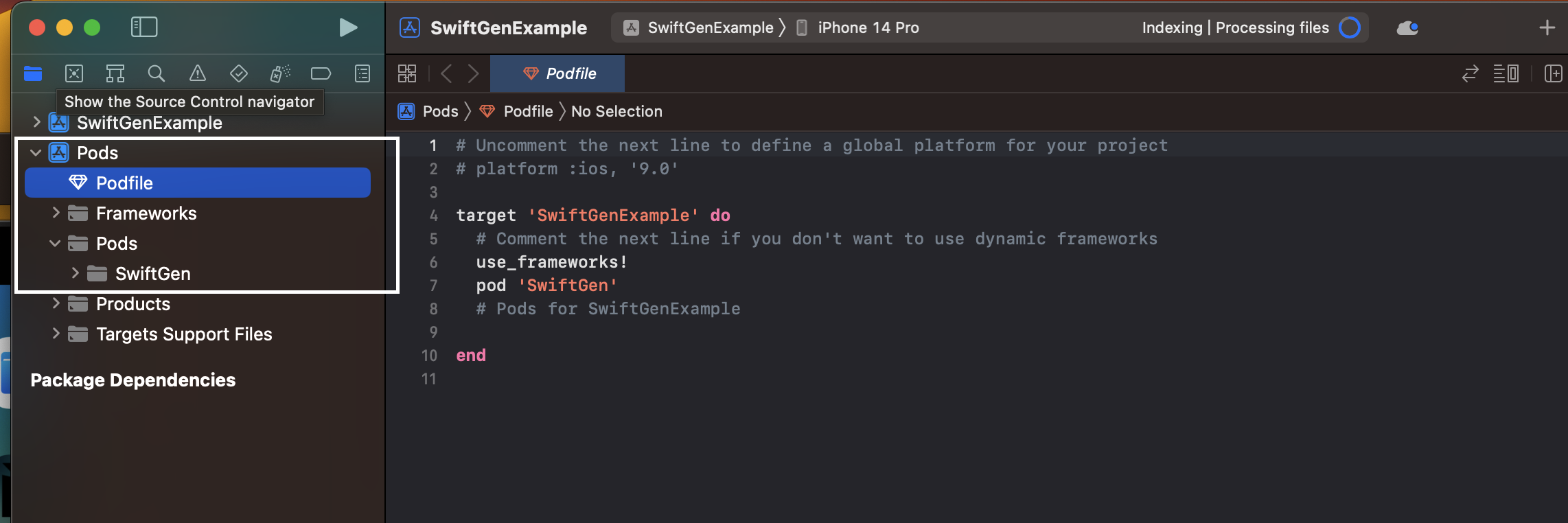

swiftgen installation
Fig: Installed SwiftGen pod in your project

2. Using Homebrew:

This will install SwiftGen system-wide. The same version of SwiftGen will be used for all projects on that machine, and you should make sure all your coworkers have the same version of SwiftGen installed on their machine too.

You can use homebrew to install SwiftGen on your system. Here's how:

  • Open the terminal and run the following command to install SwiftGen using Homebrew:
brew install swiftgen
  • After installation, you can run swiftgencommands globally from the terminal.

Step - 2 Create SwiftGen Configuration Files

SwiftGen uses configuration files to understand where your resources are located and how to generate code for them. SwiftGen supports various types, including Assets, Strings, Fonts, Colors, Plist, InterfaceBuilder, and CoreData.

In the root directory of your project, you need to create a new empty file with name swiftgen and the .yml extension swiftgen.yml in which you have to indicate the path of your files that need to be generate and the path of generated files.

For the output of generated files you have to create New folder/New Group in your project directory where all your generated files will be placed.

Once you have created configuration file, now you have to specify paths of your input and output files in the swiftgen.yml file. Formats for generate different kind of resources are here:

  • For generating xcassets (Assets and Colors)
    - path-to-your/assets-folder/Assets.xcassets
    - path-to-your/assets-folder/Colors.xcassets
    - templateName: swift5
      output: path-to-your/generated/Assets.swift
  • For generating strings (Localizable)
    - path-to-your/strings-folder/Localizable.strings
    - templateName: structured-swift5
      output: path-to-your/generated/Strings.swift
  • For generating fonts
    - path/to/font/dir
    - templateName: swift5
      output: path-to-your/generated/Fonts.swift
  • For generating storyboard scenes and segues
    - path/to/storyboards
    - templateName: scenes-swift5
      output: path/to/generated/StoryboardScenes.swift
    - templateName: segues-swift5
      output: path/to/generated/StoryboardSegues.swift
  • For generating Plist file
    - path/to/Info.plist
    - templateName: runtime-swift5
      output: path/to/generated/InfoPlistKeys.swift
Note: Ensure that you maintain proper spacing at the beginning of lines to prevent compiler errors in the YAML file.

Step - 3 Generate Resources using SwiftGen

Once you have done with your configuration files, you can generate SwiftGen code. To generate code for all the resources, you have to run swiftgen command in terminal.

if you have installed SwiftGen using CocoaPods, then you have to run this command at the location of your project.


You will get this messages in the terminal if resource files generate successfully

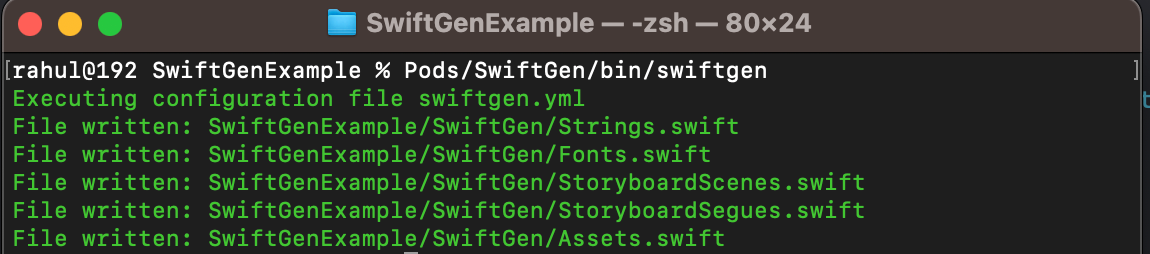

SwiftGen command in terminal
SwiftGen command in terminal

If you have installed SwiftGen using Homebrew, then you have to simply run this command.


This command will read the configurations from your swiftgen.yml files and generate Swift code that makes your resources easily accessible in your Xcode project. The generated code will be placed in the output files specified in your swiftgen.yml file.

Every-time you make any change in your resource files, you have to run the above command. But you can avoid this by adding this command in Build Phases of the project. Here is how:

  1. Go to your Project Target and select the Build Phases tab.
  2. By clicking on the “+” select New Run Script Phase
  3. Paste code generation script in shell

4. Move script below [CP] Check Pods Manifest.lock script.

5. Now just press ⌘ + B to generate SwiftGen Code. Using this no need to run command in the terminal.

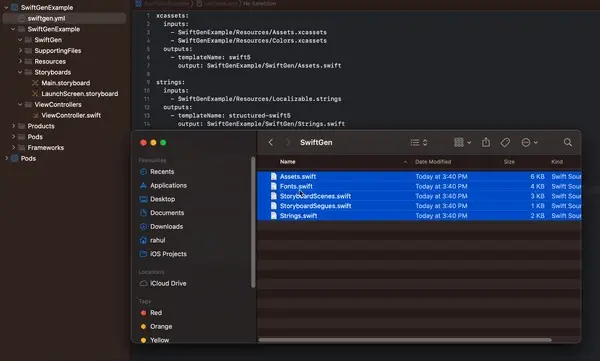

If generated files are not showing in the xcode then you have to drag generated files from finder to xcode as shown below

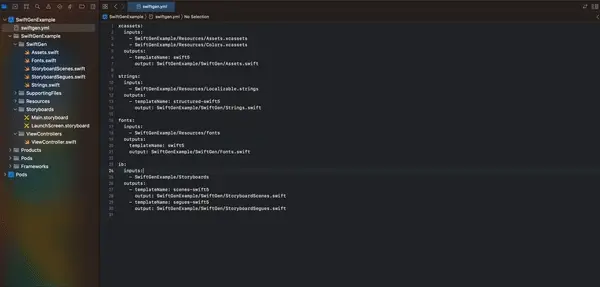

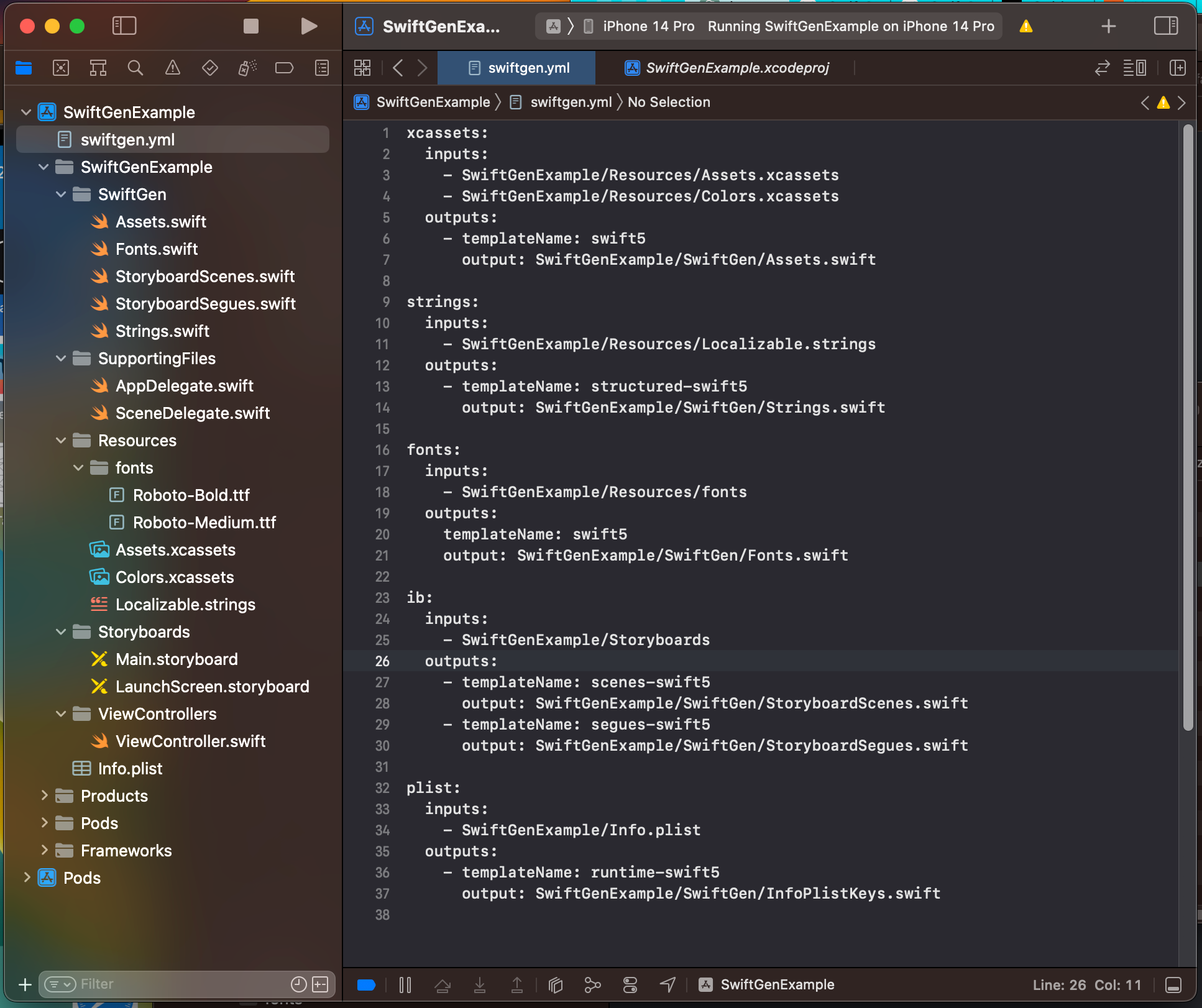

After successfully implementation of SwiftGen, your xcode project strucure and swiftgen file will be looks as below

Step - 4 Use the Generated Code

You can now use the generated Swift code in your iOS project.

  • For use of generated assets: You can use the generated enums to access your assets:
let image = Asset.Assets.myImage.image
let color = Asset.Colors.myColor.color
  • For use of generated strings: To access localized strings, you can use the L10n enum provided by SwiftGen/Strings:
let helloWorld = L10n.helloWorld
  • For use of generated fonts: To access generated font, you can use the UIFont provided by SwiftGen:
let lableBold = UILabel()
let lableMedium = UILabel()
lableBold.font = UIFont(font: FontFamily.Roboto.bold, size: 16)
lableMedium.font = UIFont(font: FontFamily.Roboto.medium, size: 16)
  • For use of generated scenes: You can instantiate scenes using the instantiate method
// StoryboardScene.storyboardName.viewControllerStoryboardId.instantiate()
let viewController = StoryboardScene.Main.viewController.instantiate()
self.navigationController?.pushViewController(viewController, animated: true)
  • For use of generated Plist: You can access generated plist using generated enums
// This will be an array
let foo = PlistFiles.ShoppingList.items

// This will be an String
let bar = PlistFiles.apiKey

That's it! You've successfully implemented SwiftGen in your iOS project, which should help you efficiently manage and use resources like strings, assets, and fonts etc. SwiftGen simplifies the resource management process and reduces the risk of manual errors when accessing these resources.
